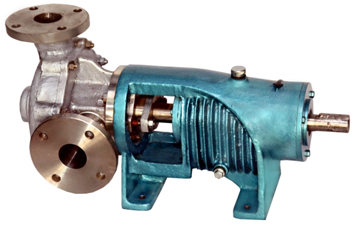

Side Suction Centrifugal Pump - CWCFP
------------------------------------CARE-WELL Side Suction Centrifugal Pump
CWCFP Material of Construction
|
Part |
Material for Standard |
|
Impeller |
CI/CF8M |
|
Shaft |
EN—8/ SS-316 |
|
Shaft sleeve |
SS-316/SS-410 |
|
Sealing |
Gland Packing/
Mechanical Seal |
|
Body |
CI/SS |
|
Casing |
CI/SS-316/SS-410 |
Applications:
- Filter Press Feeding.
- Effluent Treatment Plant.
- Dyes & Intermediates.
- Industrial Applications.
- Slurry Transfer.
- Chemical Process.
- Scrubber Application.
Features:
- Easy to Maintain & durable.
- Replaceble Parts For Positive Suction.
- Heavy Duty.
Range:
- Capacity: UP TO 100 M3/HR
- Size: 1" X 1" TO 3" X 3 "
- Speed: UP TO 2800 RPM
- Pressure: UP TO 12 KG/CM2
- M.O.C: CI/CS/SS-316/SS-304
