------------------------------------Boiler Feed Pump - CWB / High Pressure Multistage Pumps

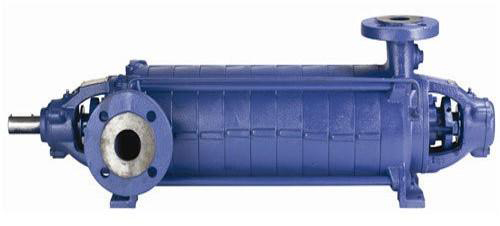

CARE-WELL PUMPS offers High Pressure Multistage Boiler Pump. These pump consists of a number of ring section diffuser casings bolted suction and delivery casing. Latest casing techniques ensure smoothness of hydraulic passages resulting in high efficiency and reliability under hazardous conditions. The enclosed impellers of the radial flow type are provided with balancing holes to balance the hydraulic axial thrust. The shaft is protected by shaft sleeve from wear in stuffing box area. The stuffing box can be sealed by gland packing or by mechanical seal with minor modification. These pumps are suitable for coupling with electric motors, IC engines or steam turbine either directly or through belt drives.
HIGH PRESSURE MULTISTAGE PUMP Technical Specification
|
CENTRIFUGAL MULTISTAGE PUMPS PERFORMANCE DATA - MODEL NO. CWB |
|||||||||||
NO |
SUCTION AND DELIVERY BRANCHES |
MODEL NO. |
NO. OF STAGES |
MAXIMUM HEAD CORRESPONDING MOTOR K.W./H.P. RECOMMENDED INCLUDING MARGIN |
CAPACITY TABLE IN M3 PER/HOUR WHEN RUNNING AT 2900 R.P.M. |
|||||||
(APPROX) ACCURACY 10% ± |
||||||||||||
|
K. W, |
H. P. |
||||||||||
1 |
40mm x 32mm |
RKB434 |
4 |
5.50 |
7.5 |
KG / CM2 |
8 |
6 |
|
|
|
|
METER |
80 |
60 |
|
|
|
|
||||||
M 3/hr. |
12 |
14 |
|
|
|
|
||||||
2 |
40mm x 32mm |
RKB435 |
5 |
7.50 |
10 |
KG / CM2 |
10 |
8 |
6 |
|
|
|
METER |
100 |
80 |
60 |
|
|
|
||||||
M 3/hr. |
11 |
13 |
14 |
|
|
|
||||||
3 |
40mm x 32mm |
RKB436 |
6 |
9.03 |
12.5 |
KG / CM2 |
12 |
10 |
8 |
6 |
|
|
METER |
120 |
100 |
80 |
60 |
|
|
||||||
M 3/hr. |
12 |
13 |
13.5 |
14 |
|
|
||||||
4 |
40mm x 32mm |
RKB437 |
7 |
11.25 |
15 |
KG / CM2 |
16 |
14 |
12 |
10 |
8 |
6 |
METER |
160 |
140 |
120 |
100 |
80 |
60 |
||||||
M 3/hr. |
11 |
12 |
13 |
13.5 |
14 |
15 |
||||||
5 |
40mm x 32mm |
RKB438 |
8 |
11.25 |
15 |
KG / CM2 |
18 |
16 |
14 |
12 |
10 |
8 |
METER |
180 |
160 |
140 |
120 |
100 |
80 |
||||||
M 3/hr. |
10 |
11 |
12 |
13 |
14.5 |
15.5 |
||||||
6 |
40mm x 32mm |
RKB439 |
9 |
15.00 |
20 |
KG / CM2 |
22 |
20 |
18 |
16 |
14 |
13 |
METER |
220 |
200 |
180 |
160 |
140 |
130 |
||||||
M 3/hr. |
8 |
12 |
14 |
15.5 |
17 |
18 |
||||||
7 |
40mm x 32mm |
RKB4310 |
10 |
15.00 |
20 |
KG / CM2 |
22 |
20 |
18 |
16 |
14 |
|
METER |
220 |
200 |
180 |
160 |
140 |
|
||||||
M 3/hr. |
12 |
14.8 |
15.8 |
17 |
19 |
|
||||||
8 |
40mm x 32mm |
RKB4311 |
11 |
16.87 |
22.5 |
KG / CM2 |
24 |
22 |
20 |
18 |
|
|
METER |
240 |
220 |
200 |
180 |
|
|
||||||
M 3/hr. |
12 |
14 |
15 |
16 |
|
|
||||||
9 |
40mm x 32mm |
RKB4312 |
12 |
18.50 |
25 |
KG / CM2 |
26 |
24 |
22 |
20 |
|
|
METER |
260 |
240 |
220 |
200 |
|
|
||||||
M 3/hr. |
12 |
14 |
15 |
16 |
|
|
||||||
Applications:
- Boiler Feed Water .
- Irrigation Installations.
- Fire Fighting.
- Pressure Boosting.
Features:
- Simple and Efficient Design.
- Energy Efficient Hydraulic Water.
- Low Noise.
- Easy Installation & Maintenance.
Range:
- Capacity: UP TO 18 M3/HR
- Size: 40 mm x 32 mm
- Speed: UP TO 2800 RPM
- Pressure: UP TO 33 KG/CM2
- M.O.C: CI/BRONZE
